V180

Buy Now

Watch Video

Core strengthsCore strengths Lifting systemLifting system spraying systemspraying system power systempower system energy systemenergy system perception systemperception system remote controlremote control Product Line ComparisonProduct Line Comparison

Core strengths

The V180 agricultural drone is a breakthrough platform with a maximum payload of 180 kg, pushing operational efficiency to a new level. It supports multiple mission scenarios—including spraying and lifting—delivering a unique, intelligent operating experience.

180 kg

Max Payload

18m/s

Maximum flight speed

40 L/min

Max Spray Flow Rate

Multifunction Intelligent HD Remote Controller

Intelligent HD Remote Controller

360°

Omnidirectional Obstacle Avoidance Radar

+ Terrain-Following Radar
+ LiDAR

Ultra-Fast Charging

40 L/min

Max Spray Flow Rate

180 kg

Max Payload

18m/s

Maximum flight speed

Intelligent HD Remote Controller

360°

Omnidirectional Obstacle Avoidance Radar

+ Terrain-Following Radar
+ LiDAR

Multifunction Intelligent HD Remote Controller

Ultra-Fast Charging

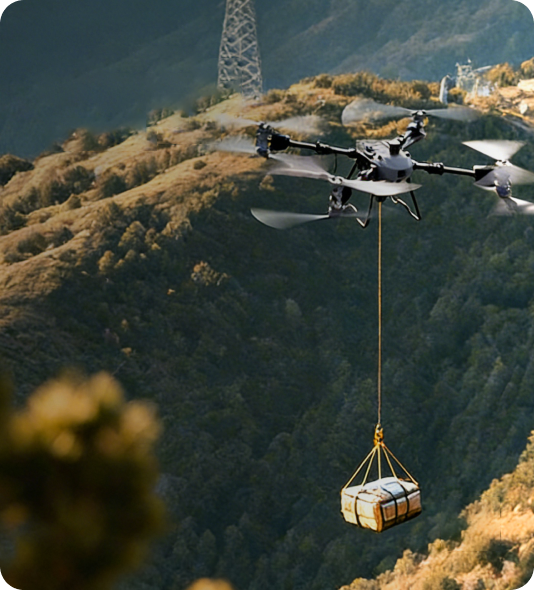

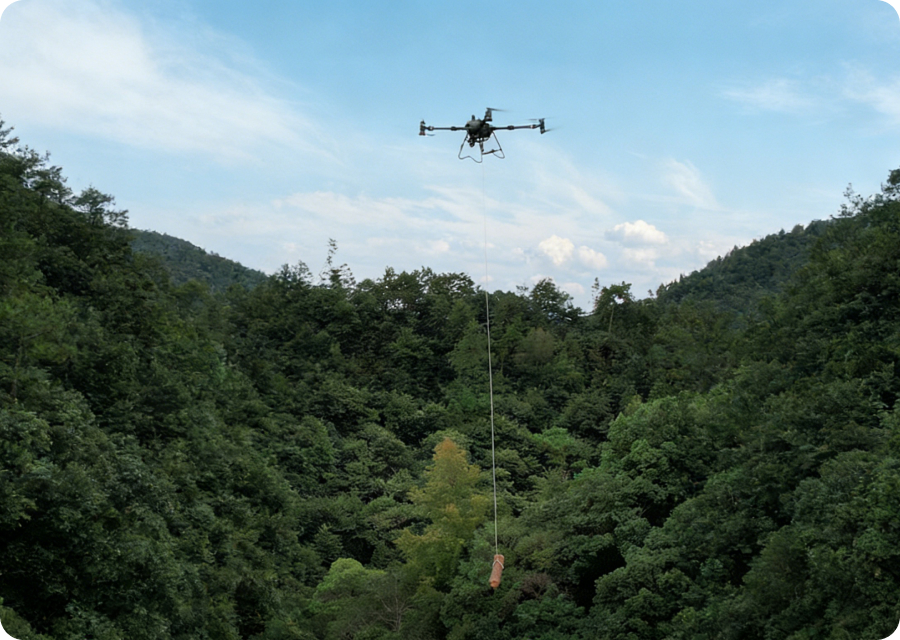

Intelligent Lifting,
Safe & Worry-Free

The ideal solution for the “last mile” — and the toughest mile.

Fully adaptable
to multiple scenarios

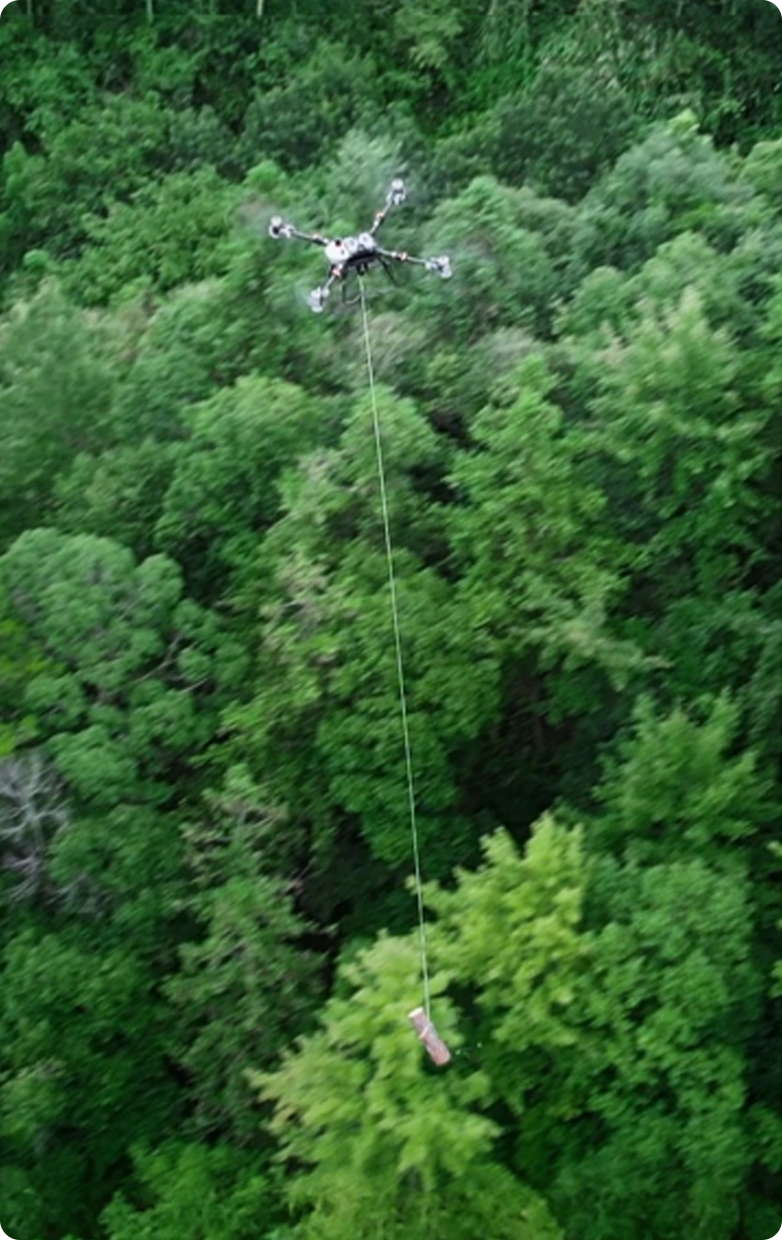

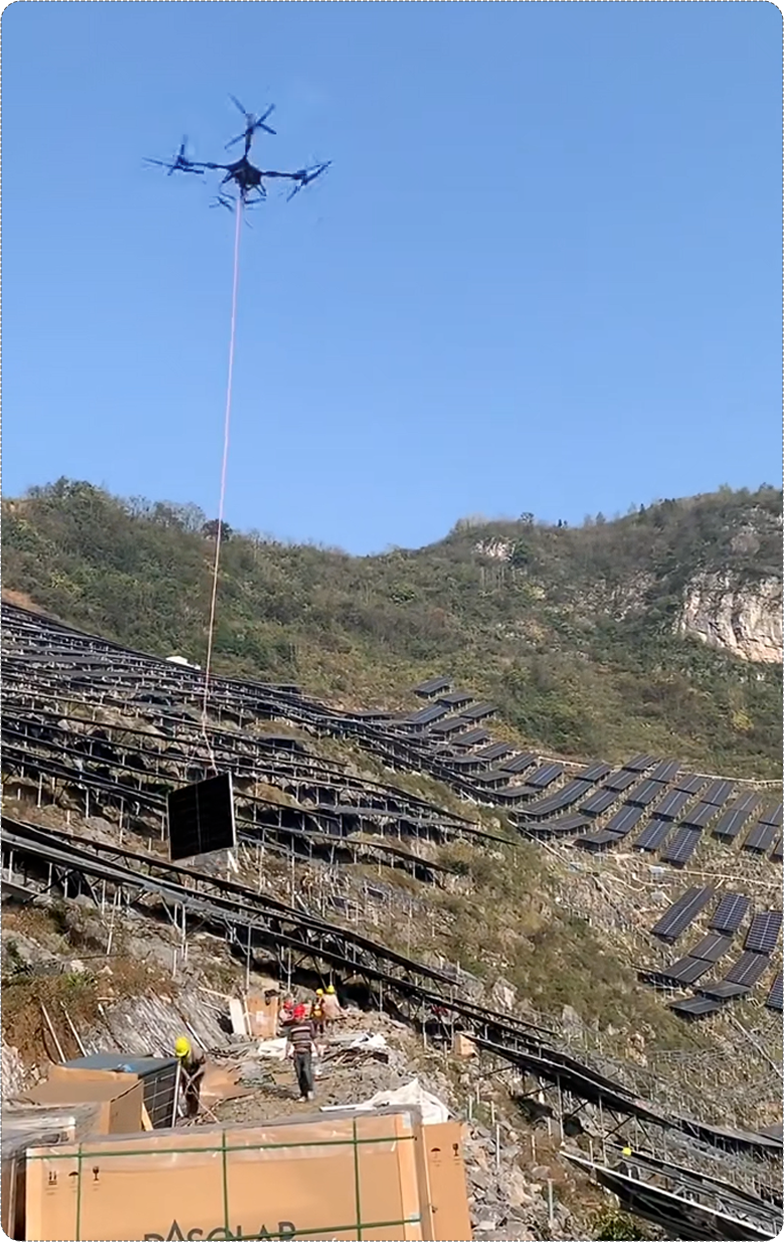

Suitable for scenarios such as forestry material transportation, emergency rescue supply, high-altitude building material delivery, and mountainous area logistics

Carrying efficiency

Suitable for scenarios such as forestry material transportation, emergency rescue supply, high-altitude building material delivery, and mountainous area logistics

Security guarantee

Suitable for scenarios such as forestry material transportation, emergency rescue supply, high-altitude building material delivery, and mountainous area logistics

Easy to operate and carry

Suitable for scenarios such as forestry material transportation, emergency rescue supply, high-altitude building material delivery, and mountainous area logistics

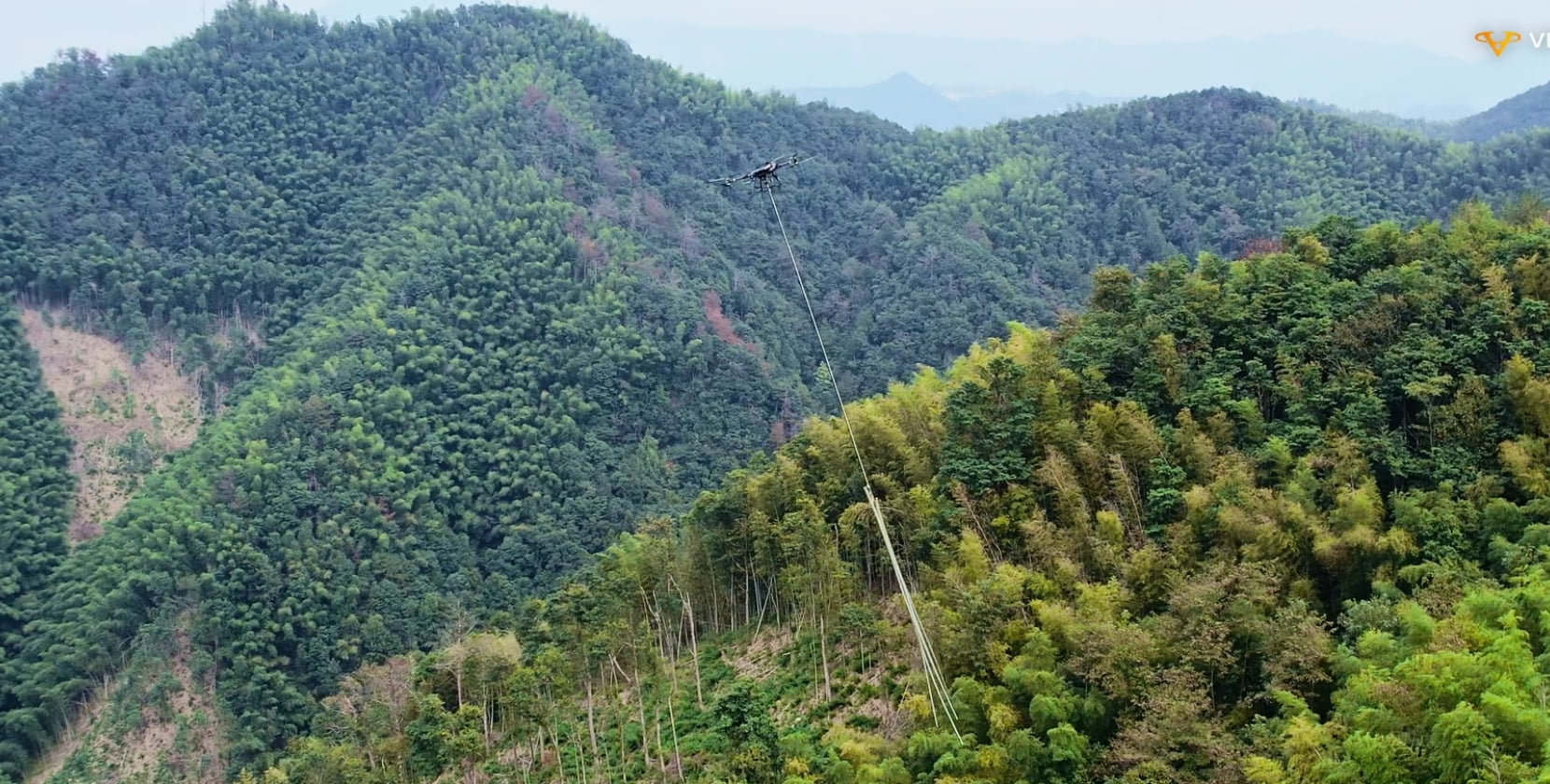

Agriculture & Forestry

Construction & Infrastructure

Power & Energy

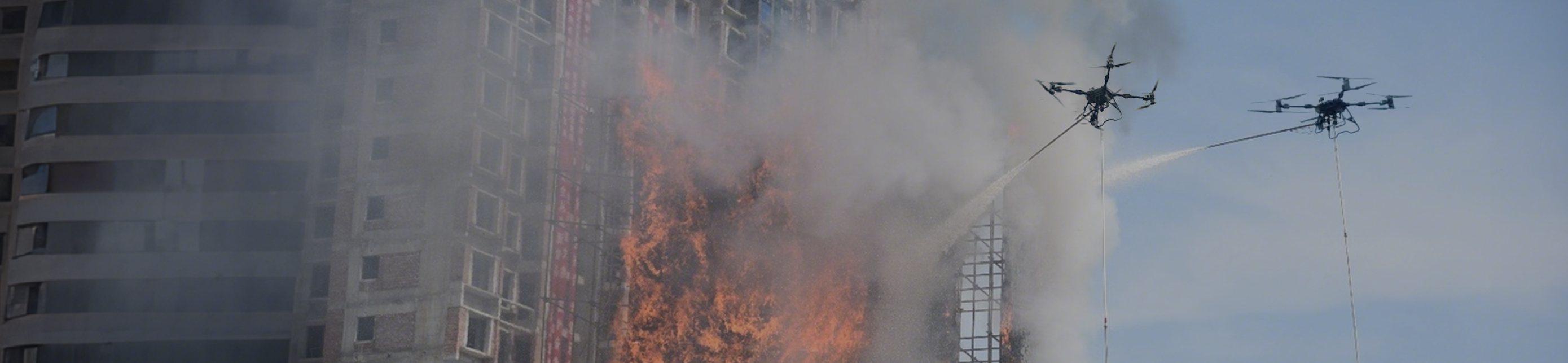

Emergency Firefighting

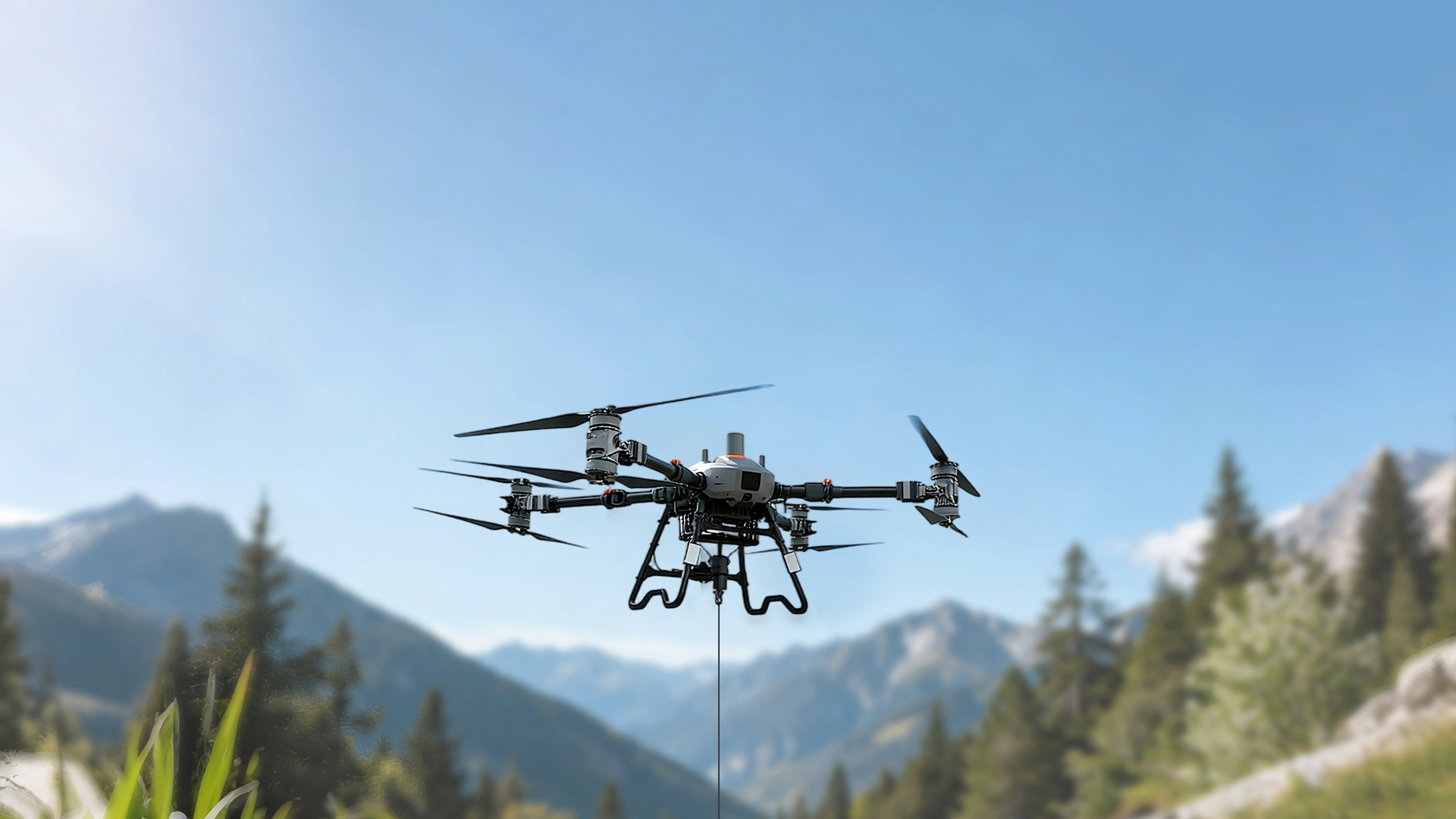

Intelligent Anti-Swing

Integrates core technologies of “tri-directional force sensor + intelligent algorithm + attitude adjustment,” enabling automatic attitude corrections during flight to suppress swinging and ensure safe, stable operations.

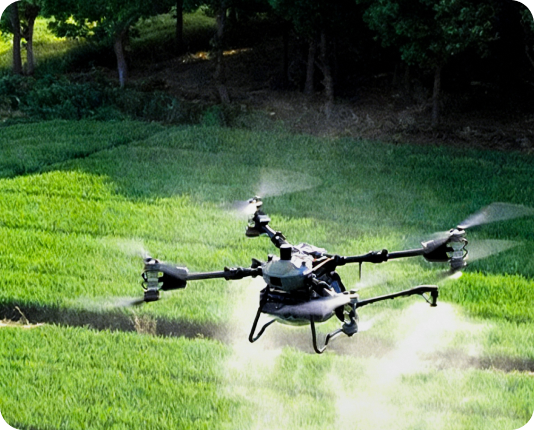

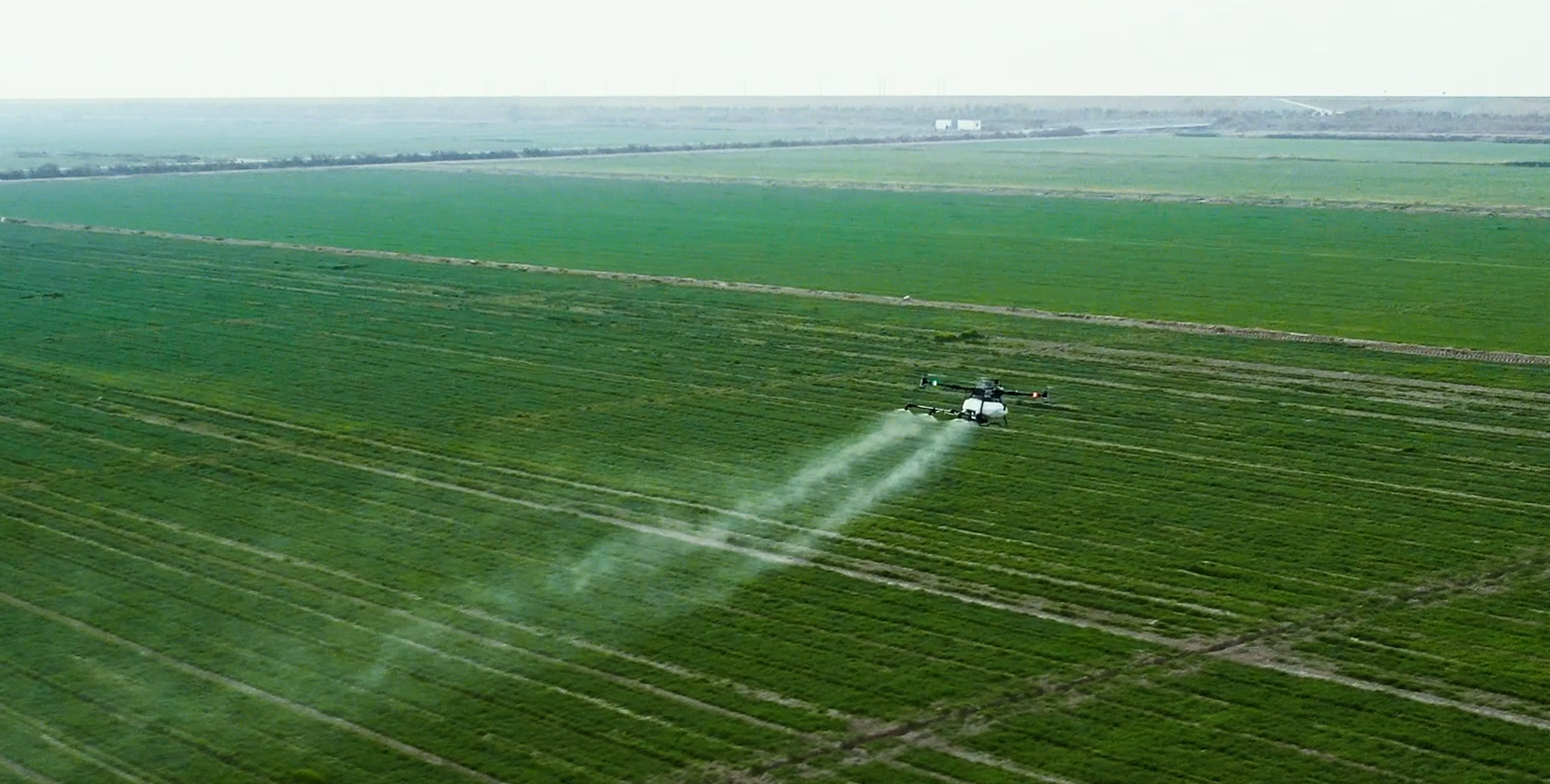

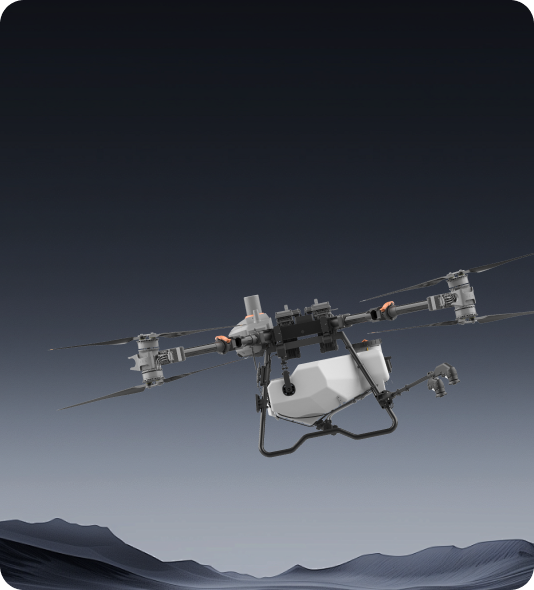

Efficient spraying,
large-scale operation

Large water volume, large water tank, fine spray droplets, rear-mounted four-nozzle layout, improve field operation efficiency, expand the spraying range for fruit tree operations while ensuring uniform coverage. Reduce the interference of water mist on the visual system.

150 L

Spray Tank
13 m

Max Spray Width
4 Nozzles

Standard Configuration
50–500 μm

Centrifugal Atomization Droplet Size

Scene 1 Scene 2 Scene 3 Scene 4 Scene 5

Powerful Performance,
Stable & Reliable

Dynamic structure

Powertrain Architecture Adopts a split-structure design with a 4-axis, 8-propeller layout and carbon-fiber propellers. The simple yet highly stable structure delivers comprehensive improvements in performance, efficiency, and safety redundancy.

Overwhelming Power

Max Total Thrust ≥500 kg
Full-Payload Efficiency

the lightweight design reduces energy consumption and improves energy conversion efficiency under full load.
Operational Stability

4-axis 8-propeller layout + high-strength fuselage structure, maintaining stable flight even under complex wind conditions (with a wind resistance rating of level 6) and in high-drop scenarios
Response Speed

Powered by a 350A high-current ESC for fast motor response

Split-structure design

The flight platform and mission system are separable, enabling fast switching between sprayingand lifting as needed.
70-inch carbon-fiber propeller

Made of carbon fiber for higher rigidity and lower weight, with strong resistance to deformation at high temperatures.

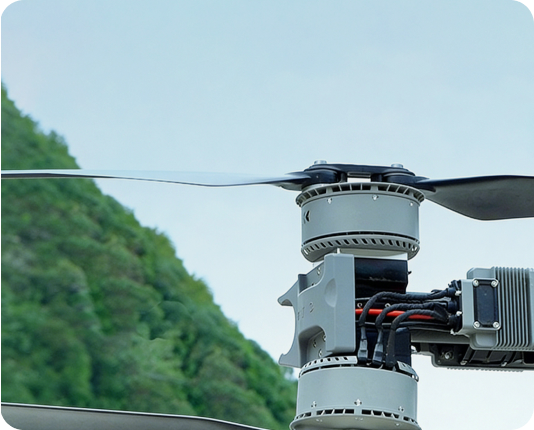

Industry-first automotive-grade flat-wire motor

Powerful, stable, and reliable—delivering faster response with ESC response time <1 μs.

Energy System,
Continuous Operations

The V180 pairs with two high-capacity smart cooling batteries and supports ultra-fast charging. Its grille-based cooling design delivers rapid heat dissipation while ensuring safety, enabling sustained high-intensity operations.

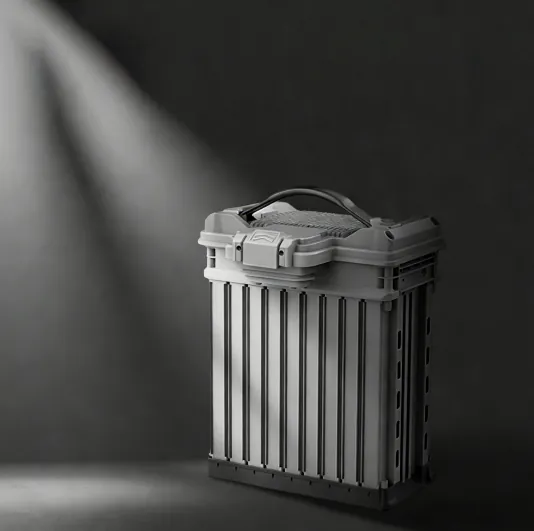

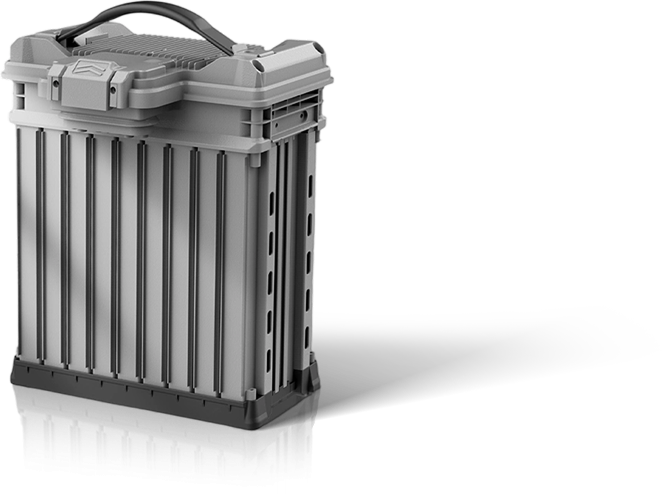

Smart Cooling High-Capacity Battery

38 Ah

Battery Capacity
>700%

Heat Dissipation Area
16 mins

Flight Time
Grille-Based Cooling Design

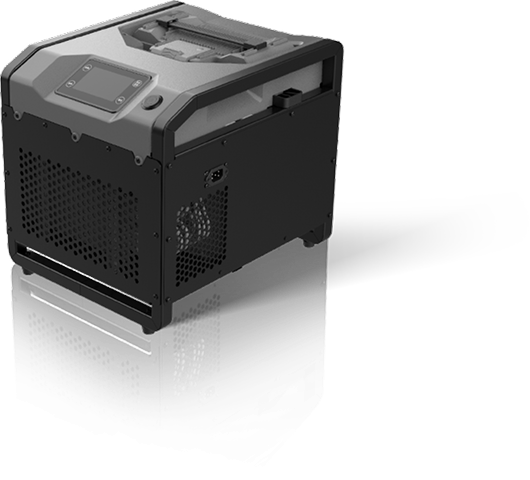

Smart Cooling Charger (Three-Phase Power)

12 kW

Ultra-Fast Charging
10 min

25% to 95% Charge

Smart Cooling High-Capacity Battery Smart Cooling Charger (Three-Phase Power)

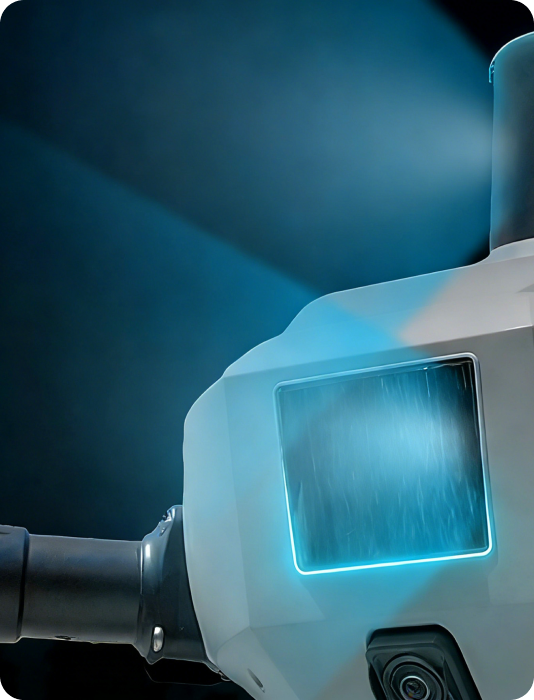

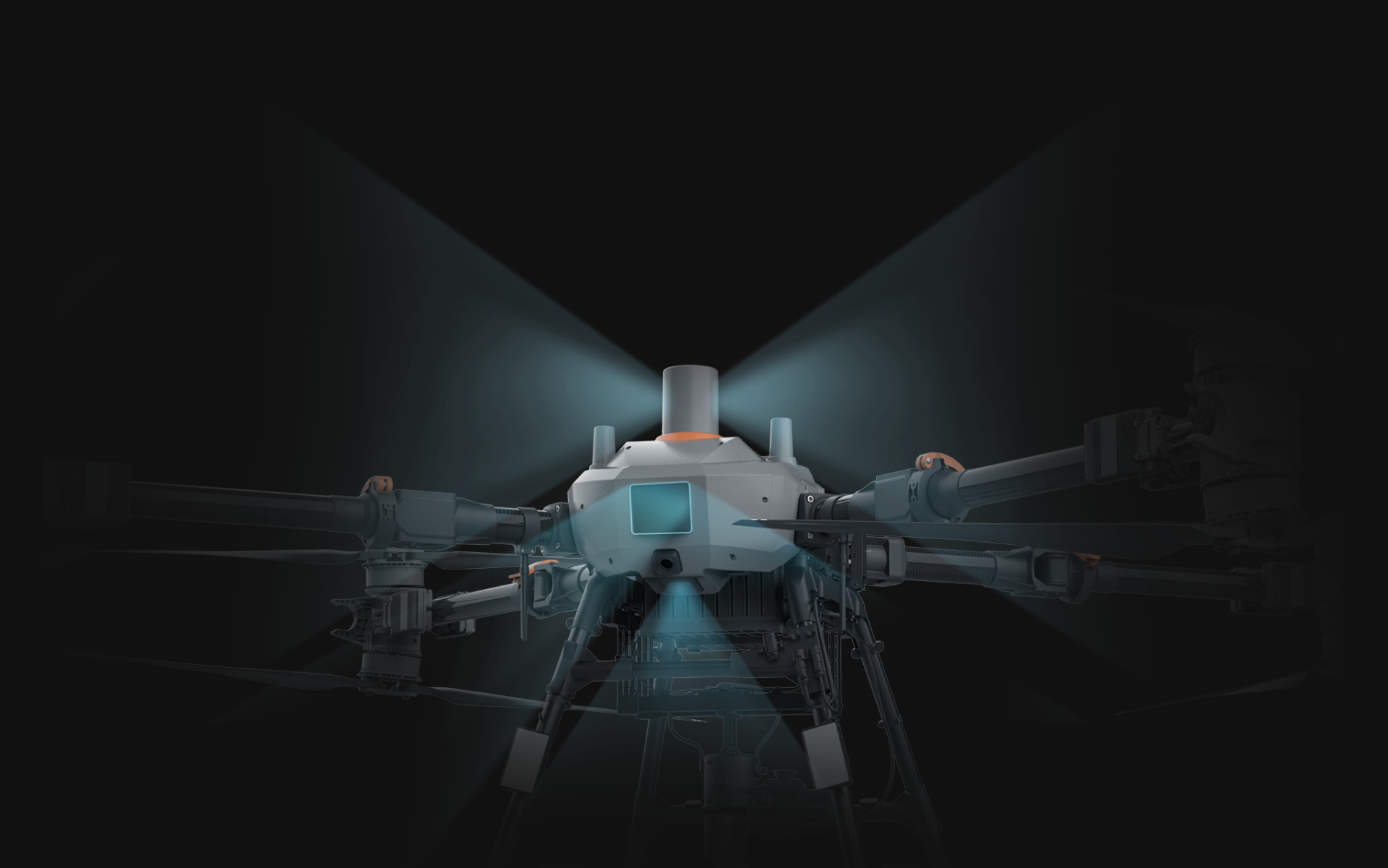

Perception System,Safety Assured

By integrating a 360° omnidirectional obstacle avoidance radar, terrain-following radar, and optional LiDAR, the V180 significantly enhances obstacle avoidance, terrain following, and high-precision positioning-improving environmental adaptability and operational safety.

Beyond-Visual-Range Assurance

Radar and video transmission work together for an effective detection range of >60 m, enhancing situational awareness and preventing collisions.

Beyond-Visual-Range Assurance

Radar and video transmission work together for an effective detection range of >60 m, enhancing situational awareness and preventing collisions.

Beyond-Visual-Range Assurance

Radar and video transmission work together for an effective detection range of >60 m, enhancing situational awareness and preventing collisions.

Beyond-Visual-Range Assurance

Radar and video transmission work together for an effective detection range of >60 m, enhancing situational awareness and preventing collisions.

Intelligent HD Remote Controller

The V180 drone integrates dedicated dual-band (2.4/5.8GHz) image transmission with 4G public network connectivity. By combining an FPV perspective and dual-remote cooperative control, it enables stable, continuous high-definition visual operation for reliable beyond-visual-line-of-sight (BVLOS) missions.

Remote Controller

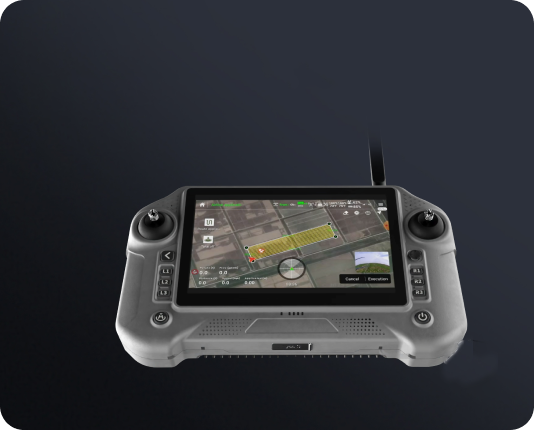

The multifunction intelligent remote controller uses a dual-battery design and features an 8-inch HD display and a high-performance processor. With rich software capabilities and dedicated shortcut keys, it significantly improves control stability, convenience, and mission duration.

HD FPV Camera

4G Video Transmission

Dual-Remote Control

Remote Controller HD FPV Camera 4G Video Transmission Dual-Remote Control

Product Line Comparison

V180

HD818

VH300 Agricultural Unmanned Vehicle

V180

Spraying Load Capacity

150L

70L

40L

25L

Maximum ow rate

40L/min

Two centrifugal30L/min Four centrifugal 40L/min

Two centrifugal18L/min Four centrifugal 28L/min

20L/min

Hoisting Load Capacity

180kg

75kg

Battery Energy

38Ah

30Ah

15Ah

Spraying Load Capacity

150L

70L

40L

25L

Output power

12000W(generator direct connection) 2000W(utility direct connection)

9000W(generator direct connection) 2000W(utility direct connection)

2000~4500W

Remote Controller Terminal

8-inch touch LCD screen

6 inch touch LCD

V180

Spraying Load Capacity

150L

Maximum ow rate

40L/min

Hoisting Load Capacity

180kg

Battery Energy

38Ah

Spraying Load Capacity

150L

Output power

12000W(generator direct connection) 2000W(utility direct connection)

Remote Controller Terminal

8-inch touch LCD screen

HD818

Spraying Load Capacity

70L

Maximum ow rate

Two centrifugal30L/min Four centrifugal 40L/min

Hoisting Load Capacity

75kg

Battery Energy

30Ah

Spraying Load Capacity

70L

Output power

9000W(generator direct connection) 2000W(utility direct connection)

Remote Controller Terminal

6 inch touch LCD

VH300 Agricultural Unmanned Vehicle

Spraying Load Capacity

40L

Maximum ow rate

Two centrifugal18L/min Four centrifugal 28L/min

Hoisting Load Capacity

Battery Energy

30Ah

Spraying Load Capacity

40L

Output power

9000W(generator direct connection) 2000W(utility direct connection)

Remote Controller Terminal

6 inch touch LCD

V180

Spraying Load Capacity

25L

Maximum ow rate

20L/min

Hoisting Load Capacity

Battery Energy

15Ah

Spraying Load Capacity

25L

Output power

2000~4500W

Remote Controller Terminal

6 inch touch LCD
